colcon

Building a package

• Prerequisites:
  • all external dependencies are available
  • the environment is set up to make ext. dep. locatable
• Input: the sources of a package
• Build the package using its build system
  • Install the package artifacts
• Output: artifacts ready to be used
  • Setup the environment to use the installed package

Building a set of packages

• Prerequisites:
  • all external dependencies are available
  • the environment is set up
    to make ext. dep. locatable
• Input: the sources of a set of packages

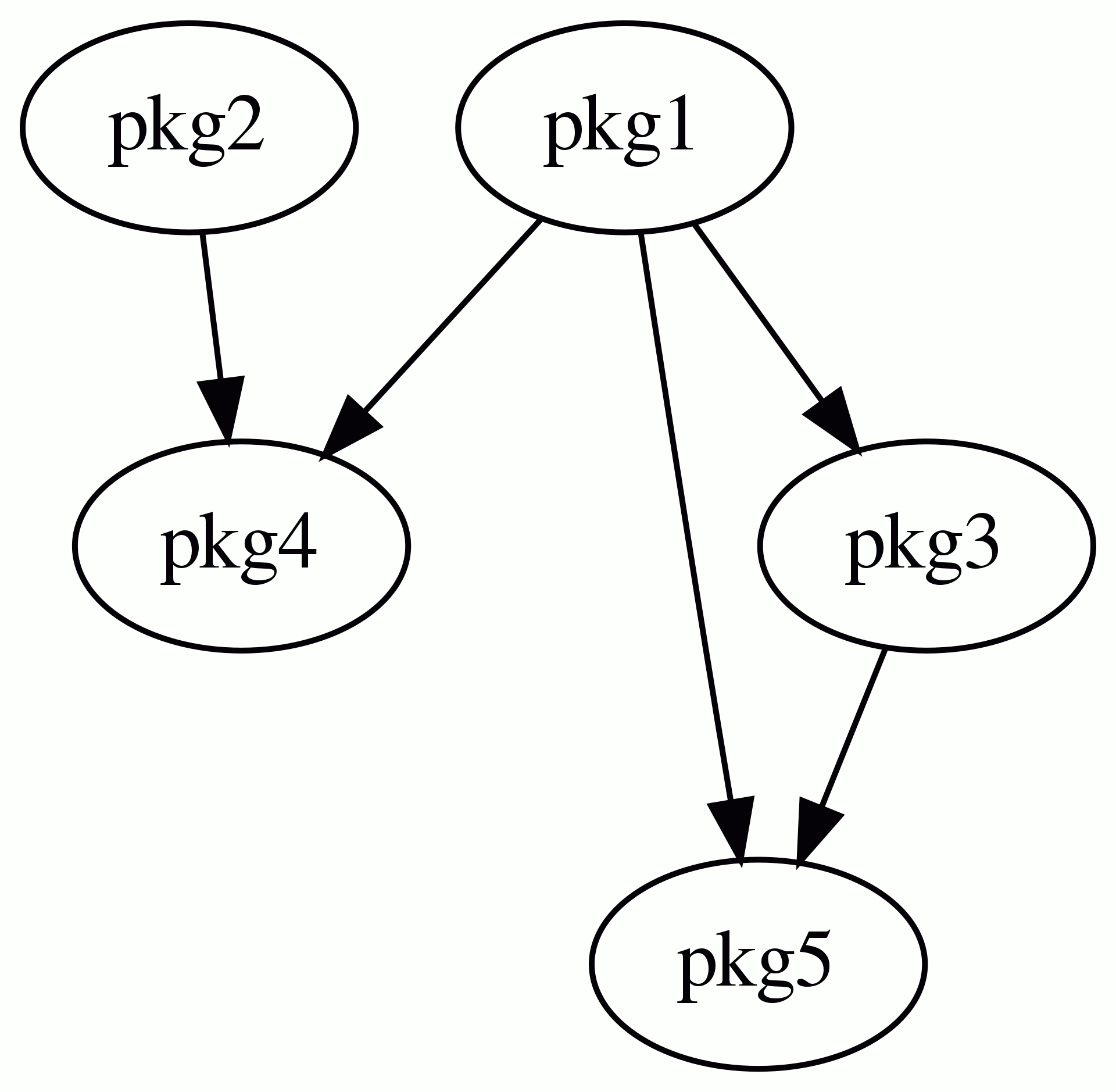

• Compute the dependency graph
• Process the packages in topological order:
  for each package
  • Update the environment to include previous built packages which the package depends on
  • Build and install the package using its build system
• Output: artifacts ready to be used
  • Setup the environment to use all installed packages

Generated by
colcon-graphviz-anim

Wait, don't we have that already?

	1.	2.	3.	4.	5.	6.	7.	8.
catkin_make:
catkin_make_isolated:
catkin_tools:
ament_tools:

But...

1. A pkg shouldn't need to know about the internals of other pkgs
2. Should be deterministic - unrelated pkgs shouldn't affect the result
3. Ability to process various package types, e.g. CMake, Python, <put-your-here>
4. Native support for Linux, macOS, and Windows
5. Support packages "as-is", e.g. no package.xml as for FastRTPS
6. Build as fast as possible
7. Good user experience / usability features
8. Extensible code base

collective construction

High level goals

• The tool should make building, testing and using multiple packages easy
• It should be possible to add support for
  any kind of build system using extensions
• It should be possible to build any set of packages without requiring changes to their sources - if necessary missing information can be provided externally, e.g.:
  • Build Ignition packages
  • Handle one-off cases, e.g. pass -DENABLE_FOO to a single package
• After building packages they must be immediately usable
  which includes setting up necessary environment variables etc.

From colcon.readthedocs.io

collective construction

Out of scope - covered by other tools

• Fetch sources of the packages → vcstool
• Install dependencies of the packages → rosdep
• Create pkg-level binary packages (e.g. .deb) → bloom, dpkg-buildpackage

From colcon.readthedocs.io

collective construction

Software engineering goals

• All the functionality provided should be exposed in a way
  that it can be reused by other extensions
• The separation into multiple Python packages is being used to encourage modularity and loose coupling (Law of Demeter), it is also used to
  demonstrate extensibility and show that certain features are not "special"
  but can be contributed externally
• Each component should have responsibility over a single part of the software (Single responsibility principle)
• Each functionality added should follow the principle
  "you don’t pay for what you don’t use"

From colcon.readthedocs.io

Setup colcon

• Install colcon including common extensions, via:
  • the Debian package python3-colcon-common-extensions or
  • the Python package colcon-common-extensions
• Using bash or zsh? Get completion!
  • Install python3-argcomplete [deb] / argcomplete [pip]
  • Source the completion script colcon-argcomplete.bash|zsh from:
    • /usr/share/colcon_argcomplete/hook/ or
    • $HOME/.local/share/colcon_argcomplete/hook/
• Liked roscd? Try colcon_cd
  • Source the script colcon_cd.sh (similar location)
• Check for updates in the future: colcon version-check

For more details see colcon.readthedocs.io

Workspace Layout

In ROS the sources of the packages to be processes are commonly placed

• within a workspace root <ws>
• in a subdirectory named src

  <ws>
  |-- src
      |-- dir1
          |-- package.xml [with the name tag containing "pkg1"]
          |-- some_name
              |-- package.xml [nested under another package not supported]
      |-- dir2
          |-- dir3
              |-- CMakeLists.txt [with the function call "project(pkg3)"]
          |-- dir4
              |-- setup.py [with the setup argument "name='pkg4'"]
      |-- dir5
          |-- COLCON_IGNORE [empty marker file]
          |-- ...


build Command

• Build all packages in the workspace: colcon build
  • Minimal output showing progress on a by-package level (if everything goes smooth)
  • By default if any package fails all ongoing packages are aborted, no others are started
  • E.g. pass custom CMake args: --cmake-args
    which are applied to all processed packages

  $ colcon build
  Starting >>> pkg1
  Starting >>> pkg2
  Finished <<< pkg1 [10s]
  Starting >>> pkg3
  Finished <<< pkg3 [10s]
  Starting >>> pkg5
  Finished <<< pkg2 [25s]
  Starting >>> pkg4
  Finished <<< pkg5 [20s]
  Finished <<< pkg4 [20s]

  Summary: 5 packages finished [45s]


Note: if you build more than once make sure to use ccache.

Metadata

• Sometimes you want to pass pkg-specific arguments
  • Via CLI that would be cumbersome verbose
  • Therefore being done via yaml files
    • A file named ./colcon.meta is picked up automatically
    • Otherwise pass custom files using --metas

  {
    "names": {
      "fastrtps": {
        "cmake-args": ["-DSECURITY=ON"]
      }
    }
  }


See colcon.readthedocs.io for information about .meta files.
See colcon-metadata-repository for information how to share such files.

Event Handlers

• By default the actual output of the build isn't shown.
  • Why? Because otherwise the output from concurrent packages would interleave.
• Instead:
  • Status line


      [23s] [2/5 complete] [2 ongoing] [pkg2:install - 23s] [pkg5:cmake - 1s]


  • Any stderr output will be shown after a package finished
    • stderr output doesn't mean it failed
    • it could fail without stderr output (e.g. on Windows)
  • But - also by default - any output it written to a log file
• See section Event handler arguments in colcon build --help
  • Show all output after a pkg finished: --event-handlers console_cohesion+
  • Output on-the-fly (usually only when building a single pkg): console_direct+
  • The suffix + enables a specific handler, - disables it

  <ws>
  |-- log
      |-- <cmd>_<timestamp>
      |-- latest_<cmd>
      |-- latest
          |-- events.log
          |-- logger_all.log
          |-- <pkg>
              |-- command.log
              |-- stderr.log
              |-- stdout.log
              |-- stdout_stderr.log
              |-- streams.log


list Command

  <ws>
  |-- src
      |-- dir1
          |-- package.xml
          |-- some_name
              |-- package.xml
      |-- dir2
          |-- dir3
              |-- CMakeLists.txt
          |-- dir4
              |-- setup.py
      |-- dir5
          |-- COLCON_IGNORE
          |-- ...


1. Discovery
   Determine directories to check for a package
   • Default: recursively crawl for pkgs --base-paths .
   • Alternatives:
     • explicit (non-recursive) list of paths --paths
     • get a list of paths from a configuration file --metas
   • See section Discovery arguments in
     colcon list --help for all arguments
2. Identification
   Determine if a directory contains a package
   as well as its name and type, e.g.:
   • ROS pkg: has a package.xml following a specific schema
   • CMake pkg: has a CMakeLists.txt file
   • Python pkg: has a setup.py file
3. Augmentation
   Add metadata to identified packages
   • E.g.: a package named Gazebo has a share/gazebo/setup.sh file which should be sourced (see colcon-metadata-repository)

  $ colcon list
  pkg1  <ws>/src/dir1       (ros.ament_cmake)
  pkg3  <ws>/src/dir2/dir3  (cmake)
  pkg4  <ws>/src/dir2/dir4  (python)


info Command

  $ colcon info ament_cmake_core
  path: <ws>/src/ament_cmake_core
      type: ros.ament_cmake
      name: ament_cmake_core
      dependencies:
        build: ament_package cmake python3-catkin-pkg-modules
        run: ament_package cmake python3-catkin-pkg-modules
        test:
      metadata:
        version: 0.8.0


• The ros. prefix identifies that the package has a package.xml file
• Together with the ament_cmake suffix it determines
  how the package is processed
• The dependencies are (in this case) extracted from the package.xml file
• Some dependencies are package names in the workspace,
  others name external dependencies (those are irrelevant for colcon)

graph Command

  $ colcon graph --legend
  + marks when the package in this row can be processed
  * marks a direct dependency from the package indicated
    by the + in the same column to the package in this row
  . marks a transitive dependency

  pkg1  + **.
  pkg2   + *
  pkg3    + *
  pkg4     +
  pkg5      +


• Processing the packages sequentially from top to bottom ensures the topological order
• Pkgs without dependencies between each other can be processed concurrently
  • The order of pkg4 and pkg5 depends on which dependencies are completed first

colcon graph --dot | dot ...

Package Selection Arguments

Instead of processing all packages in a workspace you often
want to only process a subset to speed up your workflow.

The following options apply to various commands:

• After making changes to packages:
  • Only process specific packages:
    --packages-select <pkgname1> [<pkgname2> ..]
  • Note: when used with build their dependencies must have been build before
• Don't know what has changed and only want to use pkgX?
  • Build up to specific pkgs - including recursive dependencies: --packages-up-to pkgX
• Process all recursive downstream packages of pkgY?
  • Including pkgX: --packages-above <pkgY>
  • Excluding pkgX: --packages-select-by-dep <pkgY>
• See section Package selection arguments in e.g. colcon build --help
  • E.g. --packages-select-regex <regex>, --packages-select-build-failed

Note: there are options to skip packages. Skipping is different from previous seen ignoring. The former doesn't process the package but uses it as a dependency for others. The later is equal to the package not being in the workspace.

More Complex Package Selection

Sometimes the existing package selection arguments
aren't covering what you want to select / skip.

1. Combined logic using nested invocations:
   • E.g. use --packages-up-to but with multiple package names matching a regular expression:
     • Use colcon list --packages-select-regex <regex> to determine the set of packages
     • Use --packages-up-to with the result of the previous determined package names
   • colcon build --packages-up-to `colcon list --packages-select-regex <regex>`
2. Write your own package selection option:
   • Any Python package can contribute an extension providing additional command line arguments
